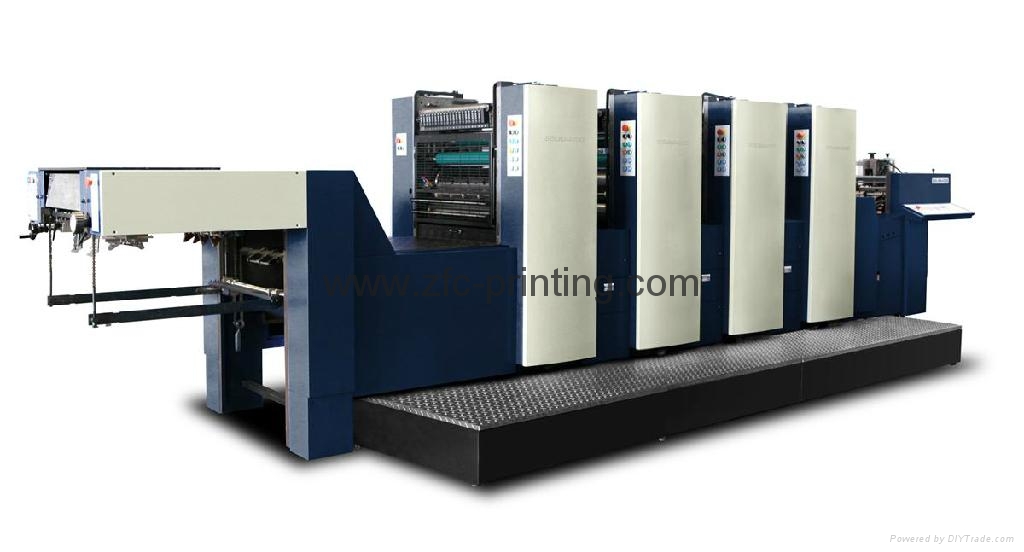

Solna 425 D Sheet Fed Offset Printing Press:
Double Sheet Detector
Down swing feeder
Continuous Alcohol Dampening System
Lever-style parted ink fountain
Pneumatic ink On/Off,
Pneumatic ink supply
Pneumatic ink/water supply
Pneumatic Impression On/Off
Closed-loop motor-driven plate adjustment (lateral, circumfluence,cocking)
Semi-automatic plate change
High Delivery
Sheet deculer
Pneumatic braking
Blow fans
Inspection table (10.4")
Dampening Tank
CCD Plate Punch
MDS ink remote control system (Optional)
CIP3 (Optional)
Specification for Solna425D sheet fed offset press
|
Printing speed
|
3000-10000 IPH
|
|
Max. paper size
|
483X640 mm
|
|
Min. paper size
|
210X250 mm
|
|
Max. printing area
|
460X635 mm
|
|
Max. printing area
|
0.04-0.60 mm
|
|
Plate size
|
505X645 mm
|
|
Plate+packing thickness
|
0.42 mm
|
|
Blanket size
|
585X650 mm
|
|
Blanket+packing thickness
|
1.9 mm
|
|
Feeding capability
|
800 mm
|
|
Delivery capability
|
500 mm
|
|
bite
|
4-6 mm
|
|
Bite margin
|
8-9 mm
|
|
horizontal plate adjustment range
|
-1- +1 mm
|
|
vertical plate adjustment range
|
-1.96- +0.65 mm
|
|
Main power
|
11 Kw
|
|
Machine dimension
|
6850X2615X1800 mm
|
|
Machine weight
|
12000 Kg
|
| |
|
